How to Hide the Electronics on a Honda CB550 Café Racer
Every CB550 café racer build hits the same wall. You pull the side covers, cut the seat pan, and suddenly the ugliest part of the bike is on full display: the battery, the regulator/rectifier, the starter solenoid, and forty years of crusty wiring hanging in the triangle. The stock Honda setup was never meant to be seen. Café racers expose it. Here's how to fix that properly— without zip-tying components to the frame and hoping for the best.
Why the Frame Triangle Matters
On a CB550 or CB500, the open triangle under the seat is the visual center of the bike. Judges look there. Buyers look there. Every photo of your finished build shows it. A clean triangle separates a professional build from a garage hack, and the only way to get one is to relocate and consolidate the electronics.
You have three options:
1. Zip ties and electrical tape. Free, and it looks like it. Components vibrate loose, wires chafe on the frame, and you'll be chasing electrical gremlins within a season.
2. Fabricate your own tray. Totally doable if you have a welder, sheet metal tools, and a free weekend. Most builders' first attempt doesn't come out of planned if you don't have the right tools. Mostly in how the bends come to life and the lack of a sharp bend will ruin the looks of any custom box.

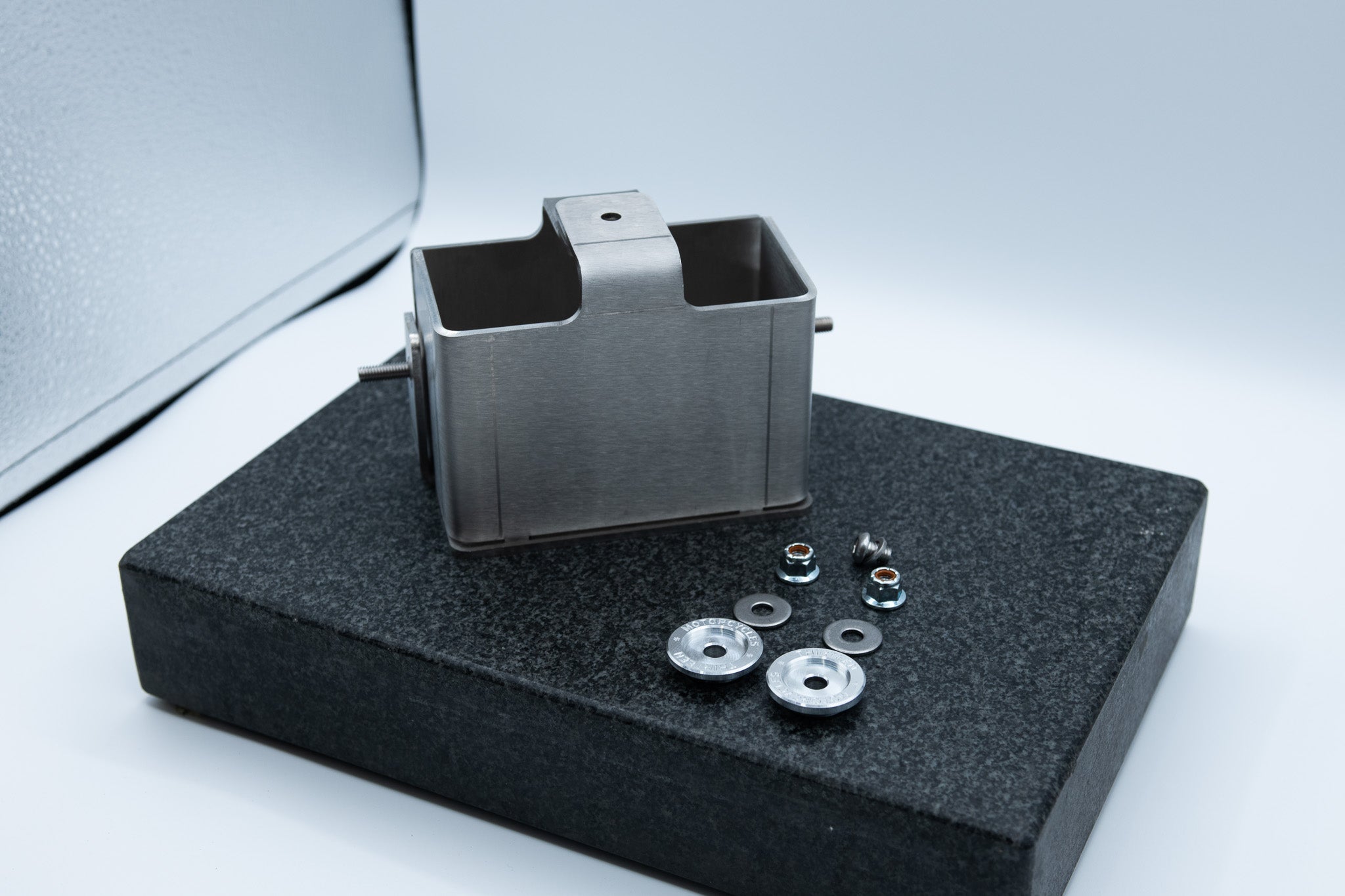

3. A purpose-built under seat electronics tray. Bolt-in, designed around the CB550/CB500 frame, with mounting for the m-unit and components in one consolidated unit.
What an Under Seat Electronics Tray Actually Does (Buy It Here)
Our Under Seat Electronics Tray for CB550/CB500 came out of our own builds — including the CB550 café racers we've built here in the shop that have been featured in the motorcycle press. It solves the three problems every builder runs into:
It consolidates everything into one location. Main electrical components mount to a single tray that sits below the seat line, out of sight from the side profile.
It's designed around the CB550 frame. No guessing on clearances. The tray fits the frame rails and keeps components clear of sight from rear triangle.
It's removable. Electrical work on a café racer never really ends. A tray that drops out with a few bolts means you're not soldering upside down inside a frame triangle.
Installation Overview
1. Disconnect and remove the battery, then strip the old component mounts from the frame.
2. Test-fit the tray under the seat area and mark your mounting points.
3. Mount your components to the tray on the bench — this is the big advantage. L
4. Bolt the loaded tray into the frame and connect your main harness runs.
5. Check seat clearance.
Total install time is an afternoon, and most of that is cleaning up the wiring you should have cleaned up anyway.
Pair It With a Lithium Battery
The single biggest space-saver on a CB550 build is swapping the stock lead-acid battery for a compact lithium unit. An 8-cell lithium battery is a fraction of the size and weight, which is what makes a fully hidden electronics package possible in the first place. Our 8 Cell Battery Box is built exactly for this — it holds the battery securely and keeps the install looking finished rather than foam-wedged.
If you're not running a center stand and want the battery even lower and further out of sight, the Center Stand Battery Box tucks it beneath the frame entirely.
FAQ
Does this tray fit the CB500? Yes — the tray is designed for both the CB550 and CB500 frames, which share the same frame architecture in the seat area.
Will it work with a stock seat? It's designed for café racer and brat-style seat conversions where the stock pan and side covers are removed. If you're keeping the bike bone stock, the factory setup already hides everything.
Do I need to run a lithium battery? Not required, but strongly recommended. Compact lithium batteries are what make a truly hidden electronics package possible on these frames.
Can I install it without welding? Yes. It's a bolt-in part — that's the point.
Thirteen Motorcycles designs and builds parts in-house for café racers, brats, trackers, and choppers.
